TP5532

Zero Drift Op-amps

TP5532 Features

* LOW OFFSET VOLTAGE: 10 μV (Max)

* ZERO DRIFT: 0.008 µV/°C

* 0.1Hz to 10Hz Noise: 1.1 µVPP

* Low Supply Current: 34µA per Amplifier

* Bandwidth: 350 kHz

* Slew Rate: 0.16 V/μs

* High Gain, 130 dB High CMRR and PSRR

* Rail-to-rail Input and Output Swing

TP5532 General Description

The 3PEAK TP5531/2/4 low-power chopper stabilized operational amplifiers provide input offset voltage correction for very low offset and offset drift over time and temperature. The devices operate with a single supply voltage as low as 1.8V, while drawing 34μA per amplifier of quiescent current with.

TP5532 Datasheet (671.87 KB)

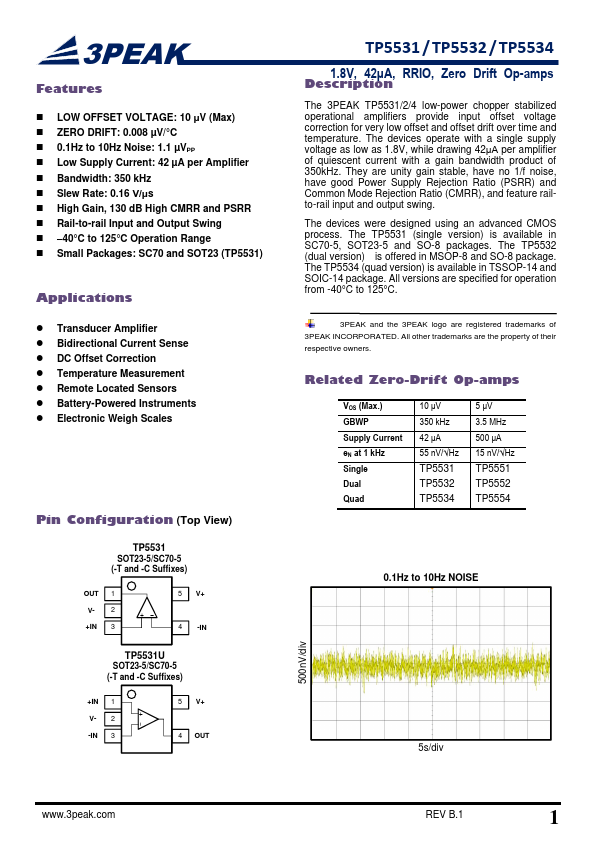

Preview of TP5532 PDF

Datasheet Details

Part number:

TP5532

Manufacturer:

3Peak

File Size:

671.87 KB

Description:

Zero drift op-amps.

📁 Related Datasheet

TP5531 Zero Drift Op-amps (3Peak)

TP5534 Zero Drift Op-amps (3Peak)

TP5510 Full Duplex Analog Front End for Consumer Applications (National Semiconductor)

TP5510 TP5510 Full Duplex Analog Front End (AFE) for Consumer Applications (Rev. A) (ETCTI)

TP5551 RRIO Op-amps (3Peak)

TP5552 RRIO Op-amps (3Peak)

TP5554 RRIO Op-amps (3Peak)

TP5591 Zero Drift Op-amps (3Peak)

TP5592 Zero Drift Op-amps (3Peak)

TP5594 Zero Drift Op-amps (3Peak)

TAGS

TP5532 Zero Drift Op-amps 3Peak

Image Gallery

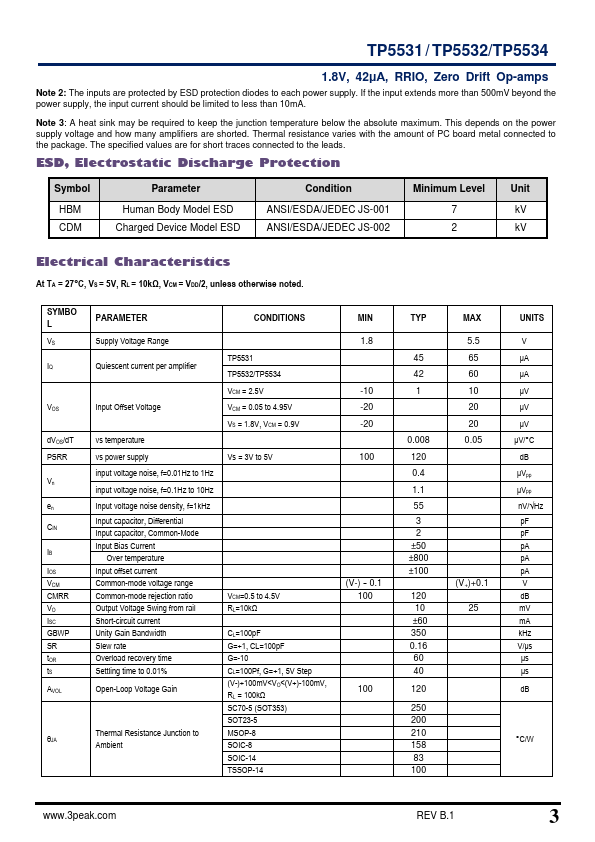

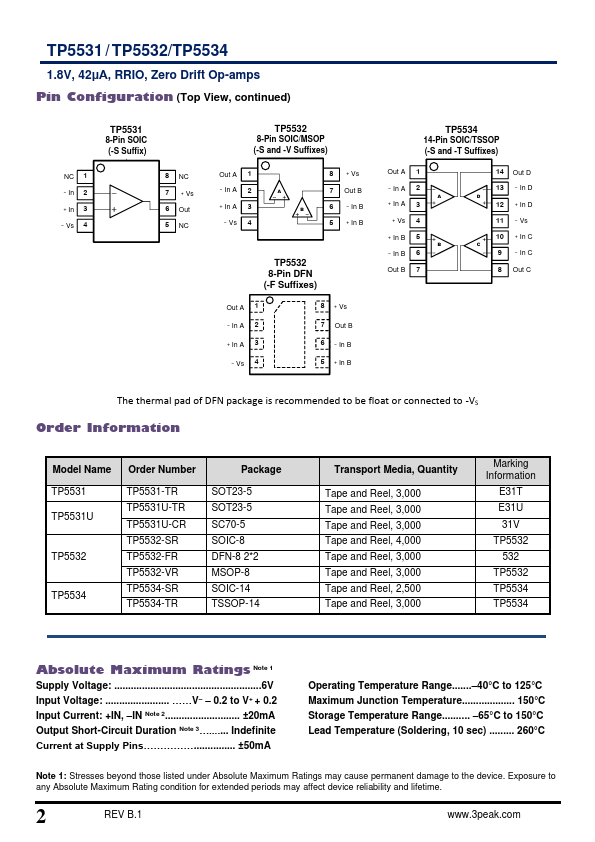

TP5532 Datasheet Preview Page 2 TP5532 Datasheet Preview Page 3
