AAT3690

1.0A USB Port/Adapter Lithium-Ion/Polymer Battery Charger

AAT3690 Datasheet (459.22 KB)

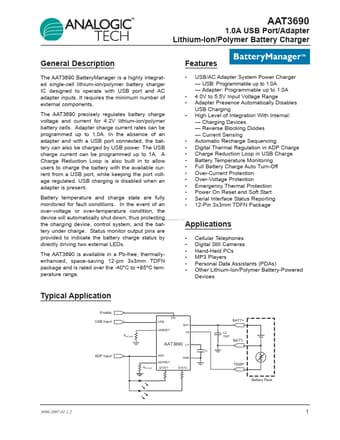

Preview of AAT3690 PDF Datasheet

Datasheet Details

Part number:

AAT3690

Manufacturer:

AAT

File Size:

459.22 KB

Description:

1.0a usb port/adapter lithium-ion/polymer battery charger

AAT3690 Features

* BatteryManager™ Battery temperature and charge state are fully monitored for fault conditions. In the event of an over-voltage or over-temperature condition, the device will automatically shut down, thus protecting www.DataSheet4U.com the charging device, co

AAT3690 General Description

The AAT3690 BatteryManager is a highly integrated single-cell lithium-ion/polymer battery charger IC designed to operate with USB port and AC adapter inputs. It requires the minimum number of external components. The AAT3690 precisely regulates battery charge voltage and current for 4.2V lithium-ion.
