AAT3697

2A Lithium-Ion/Polymer Battery Charger

AAT3697 Features

* BatteryManager™

* Input Voltage Range: 4.0V to 5.5V Up to 2.0A Charging Current Adapter Present Indicator (ADPP#) High Level of Integration with Internal:

* Char

AAT3697 General Description

The AAT3697 BatteryManager is a highly integrated single-cell lithium-ion/polymer battery charger IC designed to operate with AC adapter inputs. It requires a minimum number of external components. The AAT3697 precisely regulates battery charge voltage and current for 4.2V lithiumion/polymer battery.

AAT3697 Datasheet (1.27 MB)

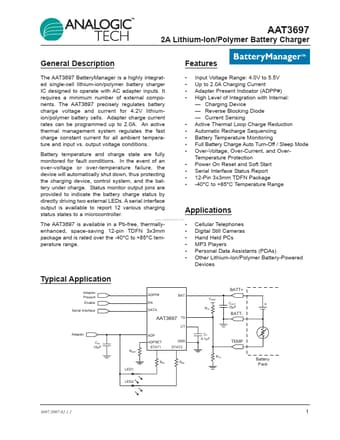

Preview of AAT3697 PDF

Datasheet Details

Part number:

AAT3697

Manufacturer:

AAT

File Size:

1.27 MB

Description:

2a lithium-ion/polymer battery charger.
