5SDD38H5000 Datasheet - ABB

5SDD38H5000 Rectifier Diode

VRSM IF(AV)M IF(RMS) IFSM VF0 rF = = = = = = 5000 3810 5990 45×103 0.903 0.136 V A A A V mΩ Rectifier Diode 5SDD 38H5000 Doc. No. 5SYA1177-00 Feb. 06 Optimum power handling capability Very low on-state losses www.DataSheet4U.com Blocking Maximum rated values Note 1 Parameter Repetitive peak reverse voltage Non-repetitive peak reverse voltage Characteristic values Symbol Conditions VRRM VRSM f = 50 Hz, tp = 10ms, Tj = -40160°C f = 50 Hz, tp = 10ms, Tj = -40160°C min t.

5SDD38H5000_ABB.pdf

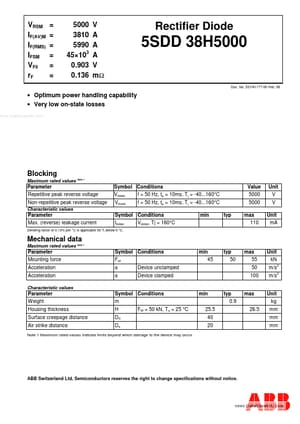

Preview of 5SDD38H5000 PDF
5SDD38H5000 Datasheet Preview Page 2 5SDD38H5000 Datasheet Preview Page 3

Datasheet Details

Part number:

5SDD38H5000

Manufacturer:

ABB

File Size:

123.94 KB

Description:

Rectifier diode.
