5SDD06D6000 Datasheet, Rectifier, PST

5SDD06D6000 Features

  • Rectifier
  • Double side cooling
  • High surge capability
  • Low forward voltage drop
  • High operating temperature
  • Low leakage current Applications

PDF File Details

Part number:

5SDD06D6000

Manufacturer:

PST

File Size:

206.99kb

Download:

📄 Datasheet

Description:

High power standard rectifier.

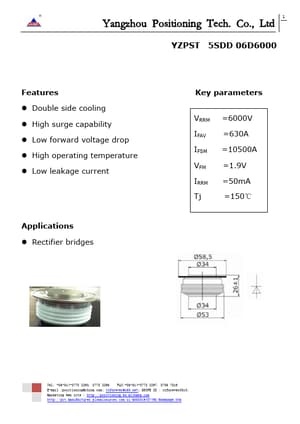

Datasheet Preview: 5SDD06D6000 📥 Download PDF (206.99kb)

5SDD06D6000 Application

  • Applications
  • Rectifier bridges Key parameters VRRM IFAV IFSM VFM IRRM Tj =6000V =630A =10500A =1.9V =50mA =150℃ Tel: +86-514-8778 2298
