5SNA1200G330100 Datasheet - ABB

5SNA1200G330100 - IGBT Module

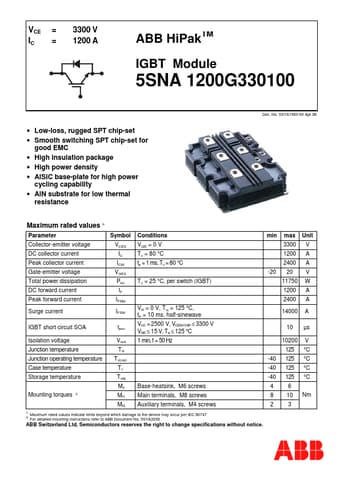

VCE = IC = 3300 V 1200 A ABB HiPakTM IGBT Module 5SNA 1200G330100 Low-loss, rugged SPT chip-set Smooth switching SPT chip-set for good EMC High insulation package High power density AlSiC base-plate for high power cycling capability AlN substrate for low thermal resistance Doc.

No.

5SYA1563-00 Apr.06 Maximum rated values 1) Parameter Symbol Conditions min max Unit Collector-emitter voltage VCES VGE = 0 V DC collector current

5SNA1200G330100-ABB.pdf

Preview of 5SNA1200G330100 PDF
5SNA1200G330100 Datasheet Preview Page 2 5SNA1200G330100 Datasheet Preview Page 3

Datasheet Details

Part number:

5SNA1200G330100

Manufacturer:

ABB

File Size:

459.69 KB

Description:

Igbt module.
