5SNA1500E330300 Datasheet - ABB

5SNA1500E330300 IGBT Module

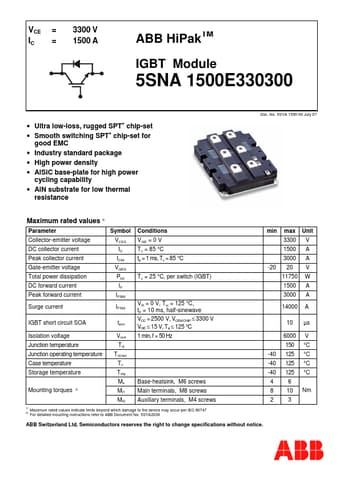

VCE = IC = 3300 V 1500 A ABB HiPakTM IGBT Module 5SNA 1500E330300 Ultra low-loss, rugged SPT+ chip-set Smooth switching SPT+ chip-set for good EMC Industry standard package High power density AlSiC base-plate for high power cycling capability AlN substrate for low thermal resistance Doc. No. 5SYA 1595-00 July 07 Maximum rated values 1) Parameter Symbol Conditions Collector-emitter voltage DC collector current Peak collector curr.
