S293-Cxxx, S291-C125, Pro M Miniature Circuit Breakers

Pro M Miniature circuit breakers General information General information Miniature circuit breakers (MCBs) are used throughout the world in all types.
The S2 Series of miniature circuit breakers offer a compact solution to protection requirements.

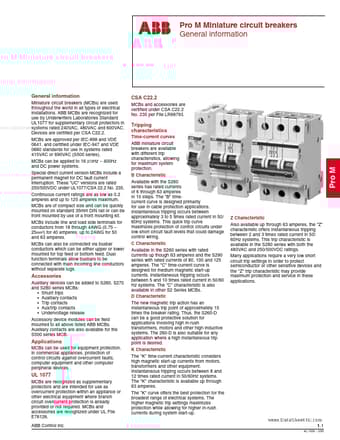

datasheet Preview Page 1 from Datasheet4u.com

S291-C125_ABB.pdf

S293-Cxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: S293-Cxxx, S291-C125. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S293-Cxxx, S291-C125

Manufacturer:

ABB

File Size:

1.37 MB

Description:

Pro M Miniature Circuit Breakers

Note:

This datasheet PDF includes multiple part numbers: S293-Cxxx, S291-C125.
Please refer to the document for exact specifications by model.

Features

* Current limiting
* Fast breaking time (2.5
* 3.5 msec)
* Unique bus connection system
* Wide range of accessories
* Available with variable depth handle mechanism
* Optional Z curve for SCR protection
* CE certified and marked

Applications

* Instantaneous tripping occurs between approximately 3 to 5 times rated current in 50/ 60Hz systems. This quick trip curve maximizes protection of control circuits under low short circuit fault levels that could damage control wiring. C Characteristic Available in the S260 series with rated currents
