S-1312 - VOLTAGE REGULATOR

Datasheet Summary

Features

  • br>.
  • Output voltage:.
  • Input voltage:.
  • Output voltage accuracy:.
  • Dropout voltage:.
  • Current consumption:.
  • Output current:.
  • Input and output capacitors:.
  • Ripple rejection:.
  • Built-in overcurrent protection circuit:.
  • Built-in thermal shutdown circuit:.
  • Built-in ON / OFF circuit:.
  • Operation temperature range:.
  • Lead-free (Sn 100%), halogen-free 1.0 V to 3.5 V, selectable in 0.05 V step 1.5 V.

📥 Download Datasheet

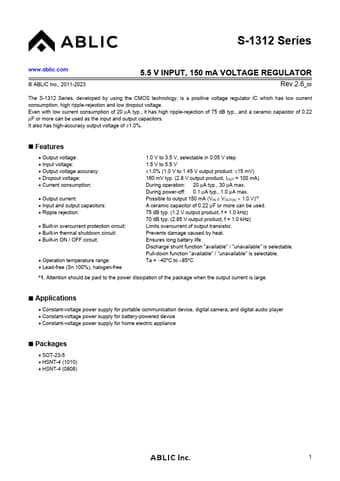

Datasheet preview – S-1312

Datasheet Details

Part number S-1312
Manufacturer ABLIC
File Size 618.80 KB
Description VOLTAGE REGULATOR
Datasheet download datasheet S-1312 Datasheet
