S-13D1 - HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR

Product Overview

Seiko

Part number	S-13D1
Manufacturer	Seiko
File Size	687.23 KB
Description	HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR
Datasheet	S-13D1 Datasheet

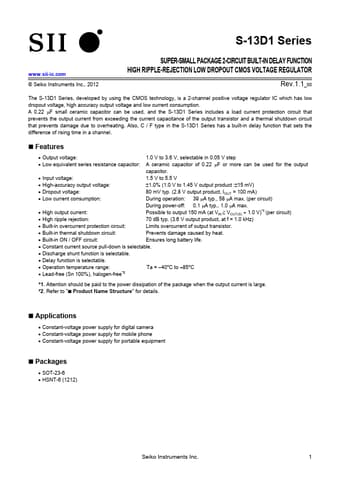

Additional preview pages of the S-13D1 datasheet.

1.0 V to 3.6 V, selectable in 0.05 V step A ceramic capacitor of 0.22 μF or more can be used for the output capacitor.
Input voltage: 1.5 V to 5.5 V.
High-accuracy output voltage: ±1.0% (1.0 V to 1.45 V output product :±15 mV).
Dropout voltage: 80 mV typ. (2.8 V output product, IOUT = 100 mA).
Low current consumption: During operation: 39 μA typ. , 58 μA max. (per circuit) During power-off: 0.1 μA typ. , 1.0 μA max. Possible to output 150 mA (at VIN ≥ VOUT(S) +.
