S-1312B34H CMOS VOLTAGE REGULATOR

S-1312xxxH Series www.ablicinc.com © ABLIC Inc., 2015 105C OPERATION LOW CURRENT CONSUMPTION HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR Rev.1.1_02 The S-1312xxxH Series, developed by using the CMOS technology, is a positive voltage regulator IC which has low current consumption, high ripple-rejection and low dropout voltage. Even with low current consumption of 20 A typ., it has high ripple-rejection of 75 dB typ., and a ceramic capacitor of 0.22 F or more can be used as the .

S-1312B34H Features

* Output voltage:

* Input voltage:

* Output voltage accuracy:

* Dropout voltage:

* Current consumption:

* Output current:

* Input and output capacitors:

* Ripple rejection:

* Built-in overcurrent protection circuit:

* Built-in thermal shutdown circuit:

S-1312B34H Datasheet (735.05 KB)

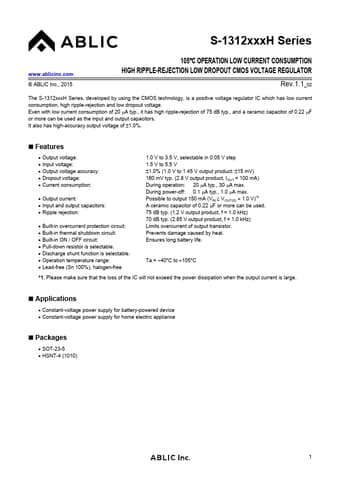

S-1312B34H Datasheet Preview — Preview of S-1312B34H PDF

Datasheet Details

Part number:

S-1312B34H

Manufacturer:

ABLIC

File Size:

735.05 KB

Description:

Cmos voltage regulator.
