S-1333 - 300mA VOLTAGE REGULATOR

Features

  • br>.
  • Output voltage:.
  • Input voltage:.
  • Output voltage accuracy:.
  • Dropout voltage:.
  • Current consumption:.
  • Output current:.
  • Input and output capacitors:.
  • Ripple rejection:.
  • Built-in overcurrent protection circuit:.
  • Built-in thermal shutdown circuit:.
  • Built-in ON / OFF circuit:.
  • Operation temperature range:.
  • Lead-free (Sn 100%), halogen-free 1.0 V to 3.5 V, selectable in 0.05 V step 1.5 V.

📥 Download Datasheet

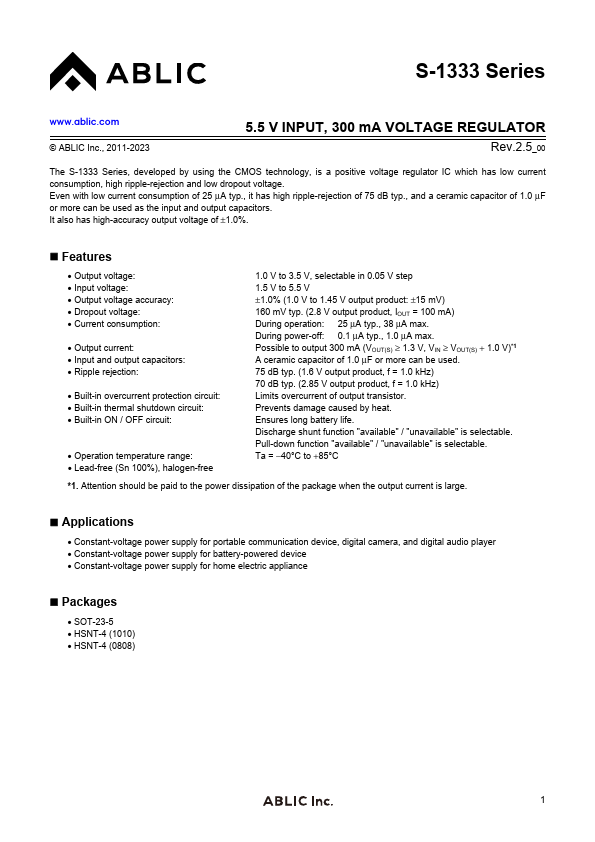

Datasheet preview – S-1333

Datasheet Details

Part number S-1333
Manufacturer ABLIC
File Size 635.34 KB
Description 300mA VOLTAGE REGULATOR
Datasheet download datasheet S-1333 Datasheet

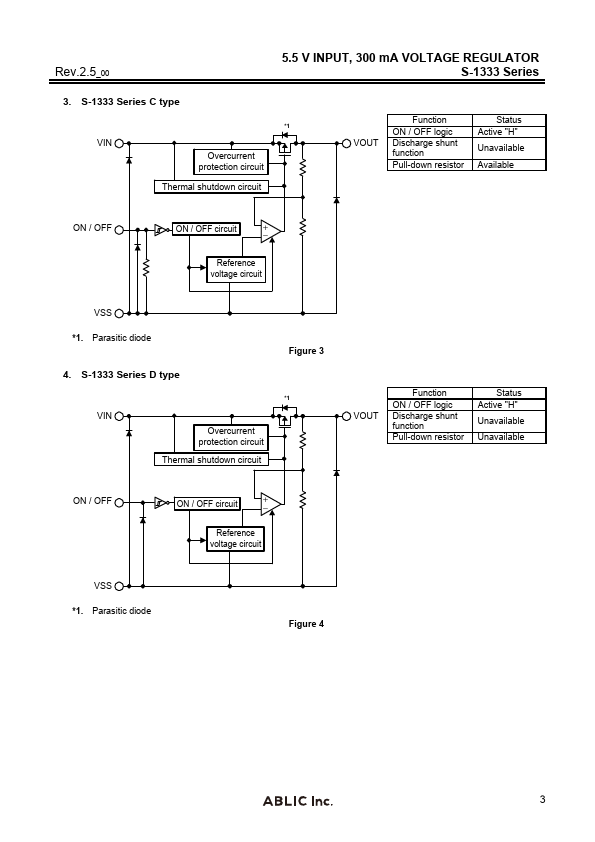

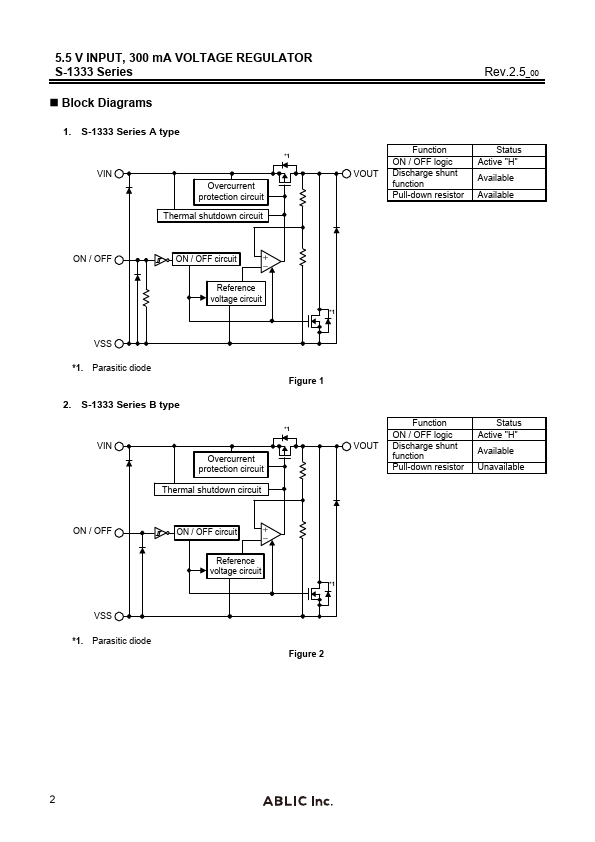

Additional preview pages of the S-1333 datasheet.

📁 Similar Datasheet

  • S-1335 - HIGH RIPPLE-REJECTION SOFT-START FUNCTION CMOS VOLTAGE REGULATOR (Seiko)
  • S-1312 - LOW CURRENT CONSUMPTION HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR (Seiko)
  • S-1312xxxH - HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR (Seiko)
  • S-1313 - SUPER LOW CURRENT CONSUMPTION LOW DROPOUT CMOS VOLTAGE REGULATOR (Seiko Instruments Semiconductor)
  • S-1315 - LOW CURRENT CONSUMPTION OUTPUT CAPACITOR-LESS CMOS VOLTAGE REGULATOR (Seiko)
  • S-1317 - 100mA CMOS VOLTAGE REGULATOR (Seiko)
  • S-13D1 - HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR (Seiko)
  • S-13R1 - REVERSE CURRENT PROTECTION CMOS VOLTAGE REGULATOR (Seiko)
  • S-100-12 - 100W / 12.5 Volts / 1.5-30 Mhz / HF Communications (Acrian)
  • S-100-12 - RF Devices (Bharat Electronics)
Other Datasheets by ABLIC

Full PDF Text Transcription

Click to expand full text
S-1333 Series www.ablic.com © ABLIC Inc., 2011-2023 5.5 V INPUT, 300 mA VOLTAGE REGULATOR Rev.2.5_00 The S-1333 Series, developed by using the CMOS technology, is a positive voltage regulator IC which has low current consumption, high ripple-rejection and low dropout voltage. Even with low current consumption of 25 μA typ., it has high ripple-rejection of 75 dB typ., and a ceramic capacitor of 1.0 μF or more can be used as the input and output capacitors. It also has high-accuracy output voltage of ±1.0%.
