S-801 VOLTAGE DETECTOR

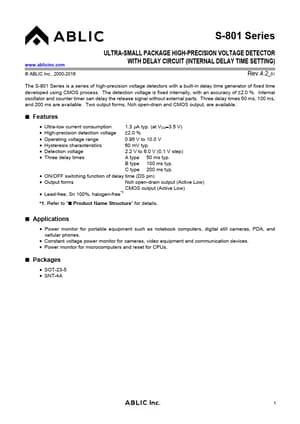

S-801 Series www.ablicinc.com © ABLIC Inc., 2000-2016 ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR WITH DELAY CIRCUIT (INTERNAL DELAY TIME SETTING) Rev.4.2_01 The S-801 Series is a series of high-precision voltage detectors with a built-in delay time generator of fixed time developed using CMOS process. The detection voltage is fixed internally, with an accuracy of 2.0 %. Internal oscillator and counter timer can delay the release signal without external parts. Three delay times 50 ms.

S-801 Features

* Ultra-low current consumption 1.3 A typ. (at VDD3.5 V)

* High-precision detection voltage 2.0 %

* Operating voltage range 0.95 V to 10.0 V

* Hysteresis characteristics 60 mV typ.

* Detection voltage 2.2 V to 6.0 V (0.1 V step)

* Three delay times A type 50 ms
