S-817 CMOS VOLTAGE REGULATOR

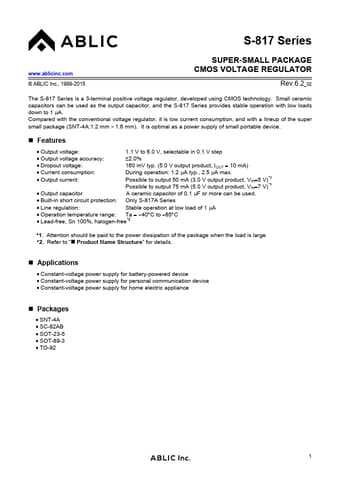

S-817 Series www.ablicinc.com © ABLIC Inc., 1999-2015 SUPER-SMALL PACKAGE CMOS VOLTAGE REGULATOR Rev.6.2_02 The S-817 Series is a 3-terminal positive voltage regulator, developed using CMOS technology. Small ceramic capacitors can be used as the output capacitor, and the S-817 Series provides stable operation with low loads down to 1 A. Compared with the conventional voltage regulator, it is low current consumption, and with a lineup of the super small package (SNT-4A:1.2 mm  1.6 mm). It is.

S-817 Features

* Output voltage: 1.1 V to 6.0 V, selectable in 0.1 V step

* Output voltage accuracy: 2.0%

* Dropout voltage: 160 mV typ. (5.0 V output product, IOUT  10 mA)

* Current consumption: During operation: 1.2 A typ., 2.5 A max.

* Output current: Possible to output 50 mA (

S-817 Datasheet (851.64 KB)
