S-93A86B, S-93A46B Datasheet (ABLIC)

S-93A86B, S-93A46B, 3-WIRE SERIAL E2PROM

Chip select input Serial clock input Serial data input Serial data output Ground Test No connection Power supply 2.

8-Pin TSSOP Top view 1 8 2 7 3 6 4 5 Pin No.

1 2 3 4 5 6 7 8 Symbol CS SK DI DO GND TEST *1 NC VCC Description Chip select input Serial clock input Serial data input Se

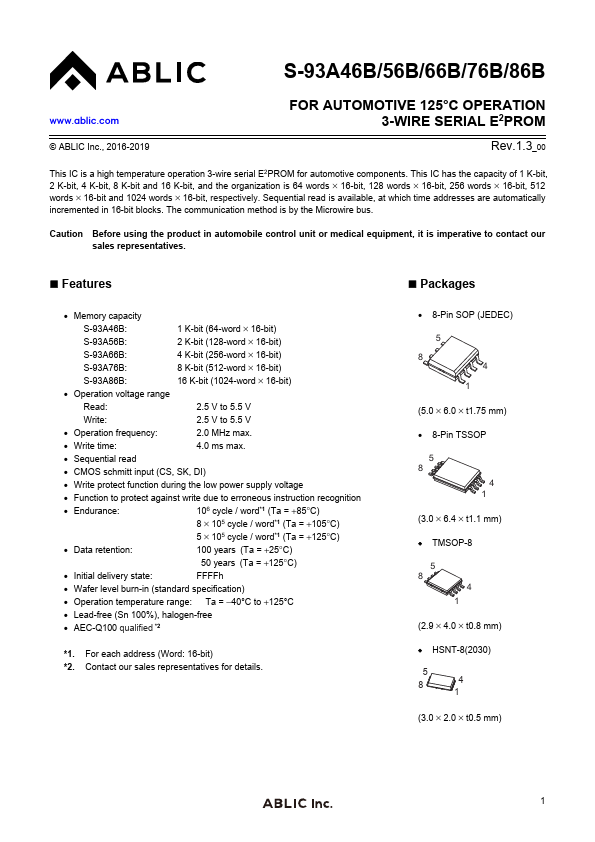

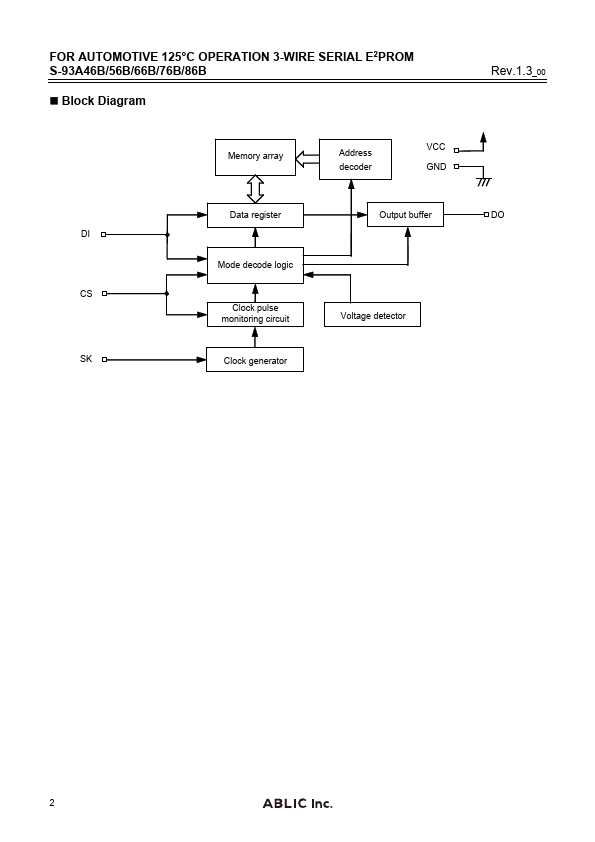

S-93A46B/56B/66B/76B/86B www.ablic.com © ABLIC Inc., 2016-2019 FOR AUTOMOTIVE 125°C OPERATION 3-WIRE SERIAL E2PROM Rev.1.3_00 This IC is a high temperature operation 3-wire serial E2PROM for automotive components.

This IC has the capacity of 1 K-bit, 2 K-bit, 4 K-bit, 8 K-bit and 16 K-bit, and the organization is 64 words × 16-bit, 128 words × 16-bit, 256 words × 16-bit, 512 words × 16-bit and 1024 words × 16-bit, respectively.

Sequential read is available, at which time addresses are automat

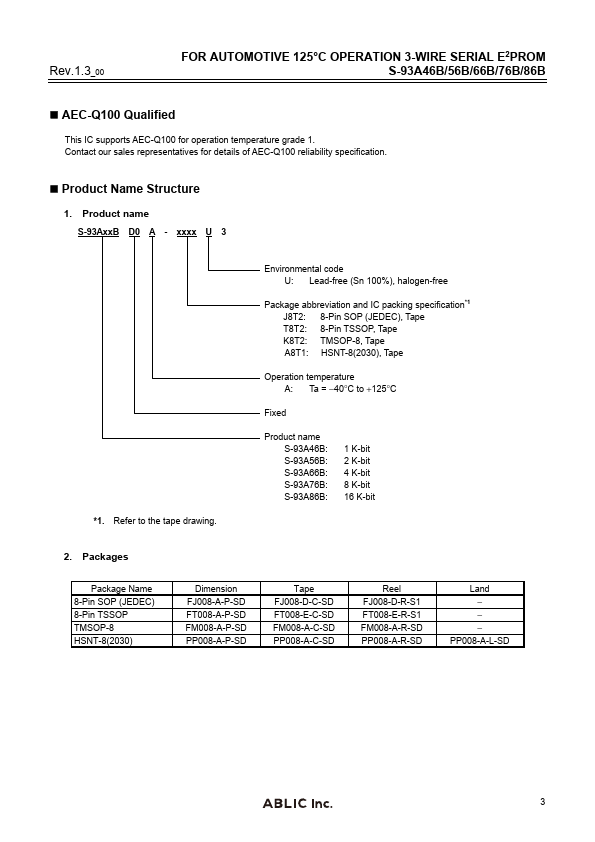

S-93A86B Features

* Memory capacity S-93A46B: 1 K-bit (64-word × 16-bit) S-93A56B: 2 K-bit (128-word × 16-bit) S-93A66B: 4 K-bit (256-word × 16-bit) S-93A76B: 8 K-bit (512-word × 16-bit) S-93A86B: 16 K-bit (1024-word × 16-bit)

* Operation voltage range Read: 2.5 V to 5.5 V Write: 2.5 V
