S-93C56C

3-WIRE SERIAL E2PROM

S-93C56C Features

* Memory capacity S-93C46C: 1 K-bit (64-word × 16-bit) S-93C56C: 2 K-bit (128-word × 16-bit) S-93C66C: 4 K-bit (256-word × 16-bit) S-93C76C: 8 K-bit (512-word × 16-bit) S-93C86C: 16 K-bit (1024-word × 16-bit)

* Operation voltage range Read: 1.6 V to 5.5 V Write: 1.8 V

S-93C56C General Description

Chip select input Serial clock input Serial data input Serial data output Ground Test No connection Power supply 2. 8-Pin TSSOP Top view 1 2 3 4 8 7 6 5 Pin No. 1 2 3 4 5 6 7 8 Symbol CS SK DI DO GND TEST
*1 NC VCC Description Chip select input Serial clock input Serial data input Serial dat.

S-93C56C Datasheet (536.43 KB)

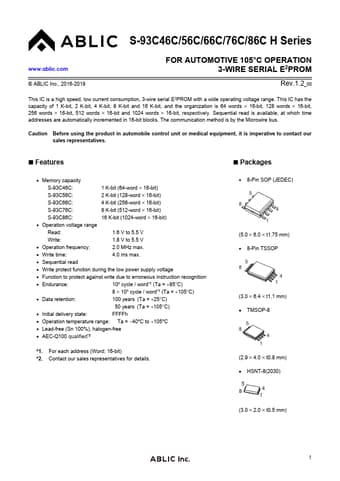

Preview of S-93C56C PDF

Datasheet Details

Part number:

S-93C56C

Manufacturer:

ABLIC

File Size:

536.43 KB

Description:

3-wire serial e2prom.
S-93C46C/56C/66C/76C/86C H Series www.ablic.com © ABLIC Inc., 2016-2019 FOR AUTOMOTIVE 105°C OPERATION 3-WIRE SERIAL E2PROM Rev.1.2_00 This IC is a.
