S-93C46B (S-93Cx6B) CMOS SERIAL E2PROM

1 CS Chip select input 2 SK Serial clock input 3 DI Serial data input 4 DO Serial data output 5 GND Ground 6 TEST *1 Test 7 NC No connection 8 VCC Power supply *1. Connect to GND or VCC. Even if this pin is not connected, performance is not affected so long as the absolute maxi.

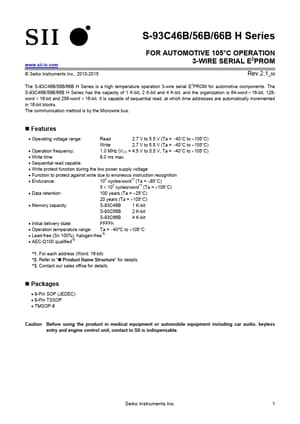

S-93C46B/56B/66B H Series www.sii-ic.com © Seiko Instruments Inc., 2010-2015 FOR AUTOMOTIVE 105°C OPERATION 3-WIRE SERIAL E2PROM Rev.2.1_00 The S-93C46B/56B/66B H Series is a high temperature operation 3-wire serial E2PROM for automotive components. The S-93C46B/56B/66B H Series has the capacity of 1 K-bit, 2 K-bit and 4 K-bit, and the organization is 64-word × 16-bit, 128word × 16-bit and 256-word × 16-bit. It is capable of sequential read, at which time addresses are automatically increment.

S-93C46B Features

* Operating voltage range: Read 2.7 V to 5.5 V (Ta =

* 40°C to +105°C) Write 2.7 V to 5.5 V (Ta =

* 40°C to +105°C)

* Operation frequency:

* Write time: 1.0 MHz (VCC = 4.5 V to 5.5 V, Ta =

* 40°C to +105°C) 8.0 ms max.

* Sequential read ca

S-93C56B_SeikoInstruments.pdf

S-93C46B Datasheet Preview — This datasheet PDF includes multiple part numbers: S-93C46B, S-93C56B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S-93C46B, S-93C56B

Manufacturer:

Seiko Instruments

File Size:

454.58 KB

Description:

(s-93cx6b) cmos serial e2prom.

Note:

This datasheet PDF includes multiple part numbers: S-93C46B, S-93C56B.
Please refer to the document for exact specifications by model.
