S-93C66C 3-WIRE SERIAL E2PROM

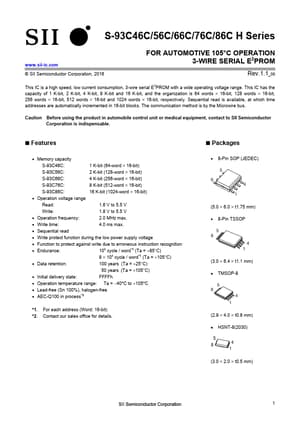

S-93C46C/56C/66C/76C/86C H Series www.sii-ic.com © SII Semiconductor Corporation, 2016 FOR AUTOMOTIVE 105°C OPERATION 3-WIRE SERIAL E2PROM Rev.1.1_00 This IC is a high speed, low current consumption, 3-wire serial E2PROM with a wide operating voltage range. This IC has the capacity of 1 K-bit, 2 K-bit, 4 K-bit, 8 K-bit and 16 K-bit, and the organization is 64 words × 16-bit, 128 words × 16-bit, 256 words × 16-bit, 512 words × 16-bit and 1024 words × 16-bit, respectively. Sequential read is av.

S-93C66C Features

* Memory capacity S-93C46C: 1 K-bit (64-word × 16-bit) S-93C56C: 2 K-bit (128-word × 16-bit) S-93C66C: 4 K-bit (256-word × 16-bit) S-93C76C: 8 K-bit (512-word × 16-bit) S-93C86C: 16 K-bit (
