ADAM24P15, ADAM24P08 - 4-BIT SINGLE-CHIP MICROCONTROLLERS

ABOV

📥 Download Datasheet

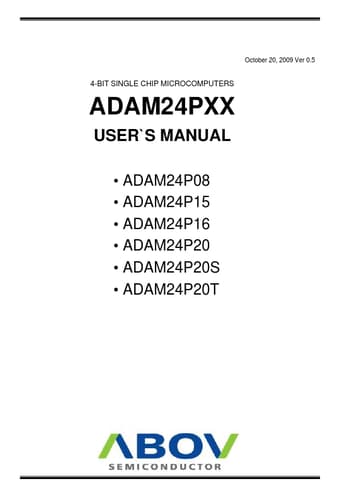

ADAM24P15 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADAM24P15, ADAM24P08. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ADAM24P15, ADAM24P08
Manufacturer: ABOV
File Size: 382.04 KB
Datasheet: ADAM24P08-ABOV.pdf
Description: 4-BIT SINGLE-CHIP MICROCONTROLLERS
Note: This datasheet PDF includes multiple part numbers: ADAM24P15, ADAM24P08.
Please refer to the document for exact specifications by model.

ADAM24P15 Product details

Features

Program memory (MTP).
4,096 bytes (4,096 x 8bit) [ multi-programmable by 1K-Byte, 2K-byte or 4K-byte).
Data memory (RAM).
32 nibble (32 x 4bit).
3 levels of subroutine nesting.
8-bit Table Read Instruction.
Oscillator Type (Operating frequency).
Internal RC Oscillator (typically 3.64MHz ±2%).
Instruction cycle.
fOSC/48.
Stop mode.
Released stop mode by key input.
Built in Power-on Reset circuit.
Built in Transistor for I. R LE.
