ADAM27C16, ADAM27C08 - 4-BIT SINGLE-CHIP MICROCONTROLLERS

ABOV

📥 Download Datasheet

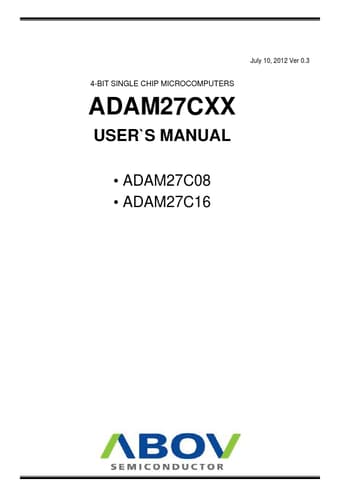

ADAM27C16 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADAM27C16, ADAM27C08. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ADAM27C16, ADAM27C08
Manufacturer	ABOV
File Size	393.68 KB
Description	4-BIT SINGLE-CHIP MICROCONTROLLERS
Datasheet	ADAM27C08-ABOV.pdf
Note	This datasheet PDF includes multiple part numbers: ADAM27C16, ADAM27C08. Please refer to the document for exact specifications by model.

ADAM27C16 Product details

Features

Program memory.
1,024 bytes (1,024 x 8bit).
Data memory (RAM).
32 nibble (32 x 4bit).
3 levels of subroutine nesting.
8-bit Table Read Instruction.
Oscillator Type (Operating frequency).
Internal RC Oscillator (typically 3.64MHz).
Instruction cycle.
fOSC/48.
Stop mode.
Released stop mode by key input.
Built in Power-on Reset circuit.
Built in Transistor for I. R LED Drive.
IOL=250mA at VDD=3V and VO=0.3V.
Built in Lo.
