MC1002 6 SEGMENT x 7 GRID LED Driver

The MC1002 is specifically designed for LED and LED DISPLAY driver. The MC1002 has max 9 segment output lines, max 7 grid output lines, one display memory, control circuit, 4 line serial data interface, and max 6 x 1 matrix key scan . Those functions are all incorporated into a single chip to build .

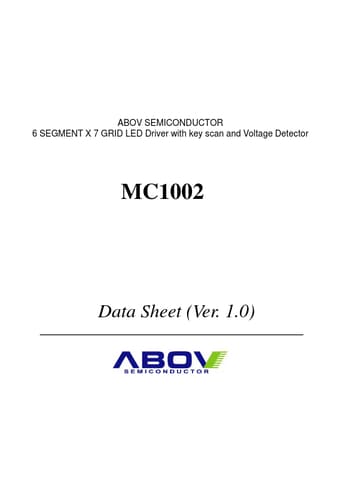

ABOV SEMICONDUCTOR 6 SEGMENT X 7 GRID LED Driver with key scan and Voltage Detector MC1002 Data Sheet (Ver. 1.0) Version 1.0 Published by FAE Team 2008 ABOV Semiconductor Co., Ltd. All right reserved Additional information of this data sheet may be served by ABOV Semiconductor offices in Korea or Distributors. ABOV Semiconductor reserves the right to make changes to any information here in at any time without notice. The information, diagrams and other data in this manual are correct and relia.

MC1002 Features

* CMOS Technology

* Segment output line selection by command : 6 ~ 9 Segment

* Grid output line selection by command : 4~7 Grid

* Operation voltage : 2.7V ~ 5.5V

* Low Power Consumption

* 8-Step Dimming control by command

* Serial Interface for
