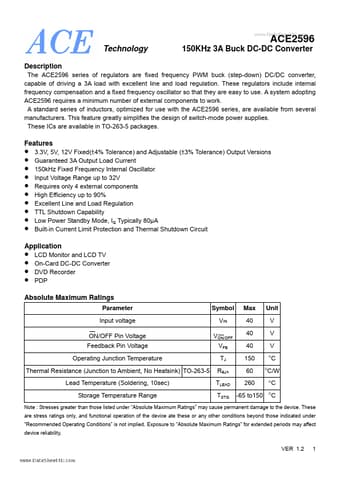

ACE2596 - 150KHz 3A Buck DC-DC Converter

General Description

The ACE2596 series of regulators are fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with excellent line and load regulation.

Key Features

  • 3.3V, 5V, 12V Fixed(±4% Tolerance) and Adjustable (±3% Tolerance) Output Versions Guaranteed 3A Output Load Current 150kHz Fixed Frequency Internal Oscillator Input Voltage Range up to 32V Requires only 4 external components High Efficiency up to 90% Excellent Line and Load Regulation TTL Shutdown Capability Low Power Standby Mode, IQ Typically 80μA Built-.

📥 Download Datasheet

Datasheet Details

Part number ACE2596
Manufacturer ACE Technology
File Size 263.81 KB
Description 150KHz 3A Buck DC-DC Converter
Datasheet download datasheet ACE2596 Datasheet
