ACE4101

Li-ion Switching Charger IC

ACE4101 Features

* include shorted cell detection and overvoltage protection. Features

* Very Low Power Dissipation

* 1.6A Maximum Charge Current

* Standalone Capability with no Requirement of External MOSFET, Sense Resistor or Blocking Diode

* Constant‐Current/Constant‐Voltage Operation with Thermal R

ACE4101 General Description

The ACE4101 is a 1.6A Li‐Ion battery switching charger intended for 5V adapters. Low power dissipation, an internal MOSFET and its compact package with minimum external components requirement makes the ACE4101 ideal for portable applications. The ACE4101 includes complete charge termination circuitr.

ACE4101 Datasheet (564.77 KB)

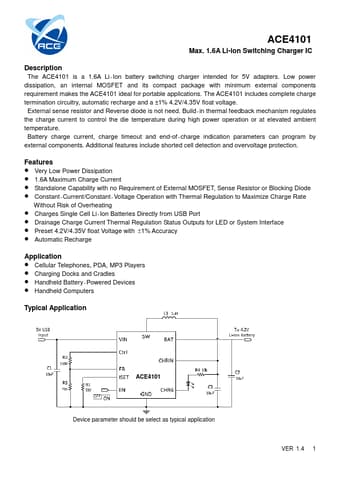

Preview of ACE4101 PDF

Datasheet Details

Part number:

ACE4101

Manufacturer:

ACE Technology

File Size:

564.77 KB

Description:

Li-ion switching charger ic.
