ACE507A

Precise Low Dropout Voltage Regulator

ACE507A Features

* Output Voltage selectable in 100mV steps (1.2V to 5.0V)

* Highly Accurate

* Low Dropout Voltage

* Low Power Consumption

* Internal current limiting and short protecting

* Small packages Application

* Battery Powered equipment

* Cameras, Video ca

ACE507A General Description

The ACE507A series are precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The ACE507A consists of a current limit circuit, a driver transistor a precision .

ACE507A Datasheet (396.78 KB)

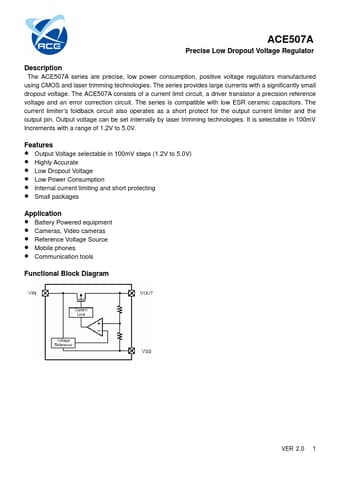

Preview of ACE507A PDF

Datasheet Details

Part number:

ACE507A

Manufacturer:

ACE Technology

File Size:

396.78 KB

Description:

Precise low dropout voltage regulator.
