AD01504 Datasheet - ADDA

AD01504 Blowers/Fans

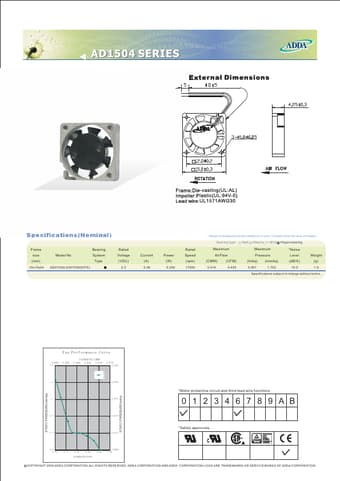

AD1504 SERIES Specifications(Nominal) Frame size (mm) 15x15x04 AD01502LX047000(00TX) :Noise is measured at the distance of one (1)meter from the axis of intake. Bearin g type: ◎=Ball ※=Sle eve○=1B1S =Hypro bearin g Bearing Model No. System Type Rated Voltage (VDC) 2.5 http://www.DataSheet4U.net/ Rated Speed (rpm) 17000 Maximum AirFlow (CMM) 0.014 Maximum Pressure (InAq) 0.067 Noise Level (dB/A) 18.5 Current (A) 0.08 Power (W) 0.200 Weight (g) 1.9 (CFM) 0.493 (m.

AD01504_ADDA.pdf

AD01504 Datasheet Preview — Preview of AD01504 PDF

Datasheet Details

Part number:

AD01504

Manufacturer:

ADDA

File Size:

266.59 KB

Description:

Blowers/fans.
