Part number:
A941300b00
Manufacturer:
ADLER
File Size:
432.53 KB
Description:
Pv fuse.

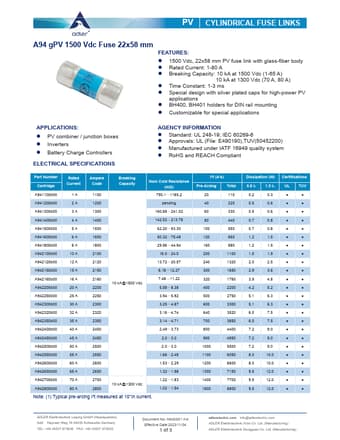

A941300b00 Datasheet (432.53 KB)
* 1500 Vdc, 22x58 mm PV fuse link with glass-fiber body
* Rated Current: 1-80 A
* Breaking Capacity: 10 kA at 1500 Vdc (1-65 A) 10 kA at 1300 Vdc (70 A, 80 A)
* Time Constant: 1-3 ms
* Special design with silver plated caps for high-power PV applications
* BH400, BH401 holde
A941300b00 Datasheet (432.53 KB)
A941300b00
ADLER
432.53 KB
Pv fuse.
