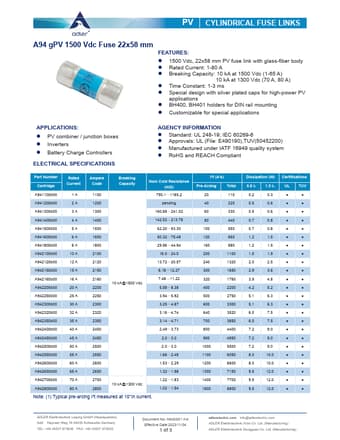

A941500b00 Datasheet, Fuse, ADLER

A941500b00 Features

• Fuse
• 1500 Vdc, 22x58 mm PV fuse link with glass-fiber body
• Rated Current: 1-80 A
• Breaking Capacity: 10 kA at 1500 Vdc (1-65 A) 10 kA at 1300 Vdc (70 A, 80 A) <

PDF File Details

Part number:

A941500b00

Manufacturer:

ADLER

File Size:

432.53kb

Download:

📄 Datasheet

Description:

Pv fuse.

A941500b00 Application

• Applications
• BH400, BH401 holders for DIN rail mounting
• Customizable for special applications APPLICATIONS:
• PV combin
