AEY2100900, AEY EV Fuse

AEY EV Fuse EV BOLT-DOWN FUSE .
Adler AEY series EV fuses are specially engineered and tested to provide best-in-class protection performance in protecting high power battery chargin.

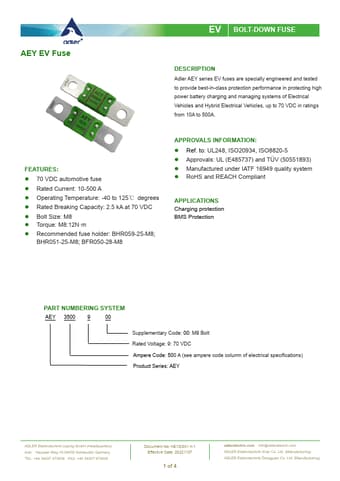

datasheet Preview Page 1 from Datasheet4u.com

AEY2100900-ADLER.pdf

AEY2100900 Datasheet Preview — Preview of AEY2100900 PDF

Datasheet Details

Part number:

AEY2100900

Manufacturer:

ADLER

File Size:

344.89 KB

Description:

AEY EV Fuse

Features

* 70 VDC automotive fuse
* Rated Current: 10-500 A
* Operating Temperature: -40 to 125℃ degrees
* Rated Breaking Capacity: 2.5 kA at 70 VDC
* Bolt Size: M8
* Torque: M8:12Nꞏm
* Recommended fuse holder: BHR059-25-M8; BHR051-25-M8; BFR050-28-M8 APPROVALS INFORMATION:

Applications

* Charging protection BMS Protection PART NUMBERING SYSTEM AEY 3500 9 00 Supplementary Code: 00: M8 Bolt Rated Voltage: 9: 70 VDC Ampere Code: 500 A (see ampere code column of electrical specifications) Product Series: AEY ADLER Elektrotechnik Leipzig GmbH (Headquarters) Add: Haynaer Weg 16 04435
