ADS12A80

SCRs

ADS12A80 Features

* Repetitive Peak Off-State Voltage : 600V and 800V

* R.M.S On-State Current ( IT(RMS)= 12 A )

* These are Pb-Free Devices 2 1 23 TO-220 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak re

ADS12A80 General Description

Available either in sensitive or standard gate triggering levels, the 12A SCR series is suitable to fit all modes of control found inapplications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, in-rush current limiting circuits,capacitive discharge ign.

ADS12A80 Datasheet (296.98 KB)

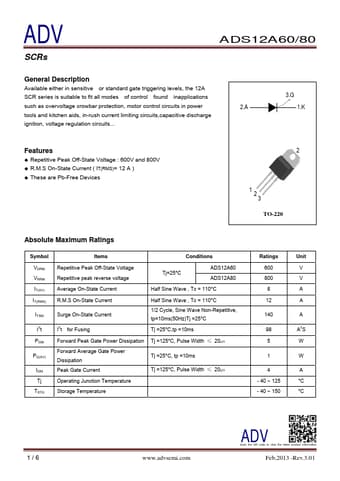

ADS12A80 Datasheet Preview — Preview of ADS12A80 PDF

Datasheet Details

Part number:

ADS12A80

Manufacturer:

ADV

File Size:

296.98 KB

Description:

Scrs.
