ADS12A60D - SCRs

ADS12A60D Description

  ADV                                                                            ADS12A60D/80D SCRs General .
Available either in sensitive or standard gate triggering levels, the 12A SCR series is suitable to fit all modes of control found inapplications such.

ADS12A60D Features

* Repetitive Peak Off-State Voltage : 600V and 800V
* R. M. S On-State Current ( IT(RMS)= 12 A )
* These are Pb-Free Devices 3.G 2.A 1.K 2 123 TO-251 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repeti

📥 Download Datasheet

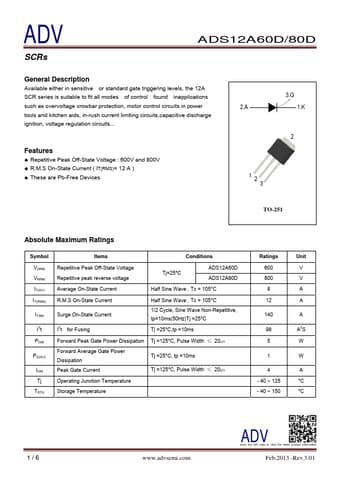

Preview of ADS12A60D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADS12A60D
Manufacturer
ADV
File Size
295.00 KB
Datasheet
ADS12A60D-ADV.pdf
Description
SCRs
