ADS12A60E

SCRs

ADS12A60E Features

* Repetitive Peak Off-State Voltage : 600V and 800V

* R.M.S On-State Current ( IT(RMS)= 12 A )

* These are Pb-Free Devices 3.G 2.A 1.K 2 12 3 TO-252-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Rep

ADS12A60E General Description

Available either in sensitive or standard gate triggering levels, the 12A SCR series is suitable to fit all modes of control found inapplications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, in-rush current limiting circuits,capacitive discharge ign.

ADS12A60E Datasheet (290.41 KB)

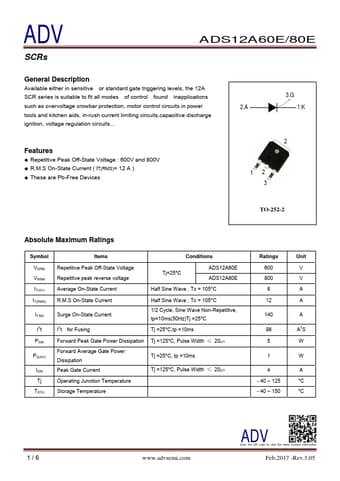

ADS12A60E Datasheet Preview — Preview of ADS12A60E PDF

Datasheet Details

Part number:

ADS12A60E

Manufacturer:

ADV

File Size:

290.41 KB

Description:

Scrs.
