ADS25A60G - SCRs

📥 Download Datasheet

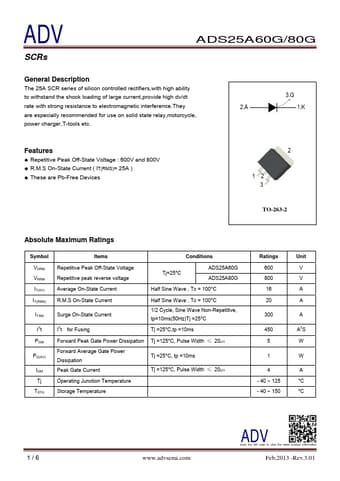

ADS25A60G Datasheet Preview — Preview of ADS25A60G PDF

Datasheet Details

Part number: ADS25A60G
Manufacturer: ADV
File Size: 293.42 KB
Datasheet: ADS25A60G-ADV.pdf
Description: SCRs

ADS25A60G Product details

Description

The 25A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc..

Features

Repetitive Peak Off-State Voltage : 600V and 800V.
R. M. S On-State Current ( IT(RMS)= 25A ).
These are Pb-Free Devices 2 12 3 TO-263-2 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak reverse voltage Conditions Tj=25°C ADS25A60G ADS25A80G Average On-State Current Half Sine Wave , Tc = 100°C R. M. S On-State Current Surge On-State Current I2t for Fusing Half Sine Wave , Tc = 10.
