ADS-112 - Low-Power Sampling A/D Converters

Datasheet Summary

Features

  • 12-bit resolution.
  • No missing codes.
  • 1MHz minimum sampling rate.
  • Functionally complete.
  • Small 24-pin DDIP.
  • Low-power, 1.3 Watts.
  • Three-state output buffers.
  • Samples to Nyquist frequencies.

📥 Download Datasheet

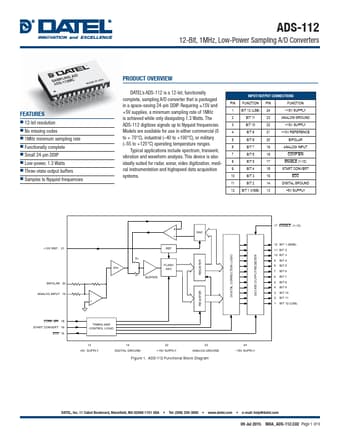

Datasheet preview – ADS-112
