ADS-325A

Sampling A/D Converter

ADS-325A Features

* 10-bit, 20MHz sampling OBSOLETE PRODUCT

* ±1LSB max. differential nonlinearity

* Internal calibration circuit

* Internal S/H amplifier

* 70MHz input bandwidth

* TTL/CMOS compatible in-out logic

* Latched three-state output data

ADS-325A General Description

DATEL's ADS-325A is a low power, 10-bit, 20MHz, CMOS sampling A/D converter. Its small 48 pin plastic LQFP package contains a S/H amplifier, a 3-state output register, linearity calibration circuitry, and all necessary control logic. Only two external reference voltages, an A/D clock and a few digit.

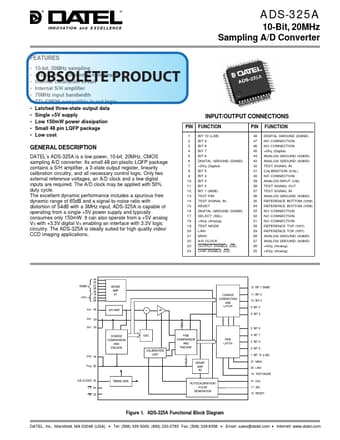

ADS-325A Datasheet (139.91 KB)
