ADS30A60H

SCRs

ADS30A60H Features

* Repetitive Peak Off-State Voltage : 600V and 800V

* R.M.S On-State Current ( IT(RMS)=30 A )

* These are Pb-Free Devices 3.G 2.A 1.K 2 1 23 TO-3P Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetit

ADS30A60H General Description

The 30A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc. Fea.

ADS30A60H Datasheet (290.15 KB)

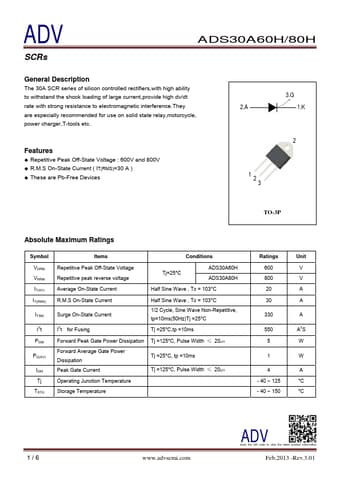

Preview of ADS30A60H PDF

Datasheet Details

Part number:

ADS30A60H

Manufacturer:

ADV

File Size:

290.15 KB

Description:

Scrs.
