ADV809

3-pin microprocessor resets

ADV809 Features

* Precision VCC Monitor for 3.0V, 3.3V, and 5.0V Supplies 140msec Guaranteed Minimum RESET, RESET Output Duration RESET Output Guaranteed to VCC = 1.0V (MAX809) Low 17A Supply Current VCC Transient Immunity Small SOT

* 23 Package No External Components Wide Operating Temperature:

ADV809 General Description

Pin Number 1 Name GND 2 (ADV809) RESET 2 (ADV810) 3 RESET.

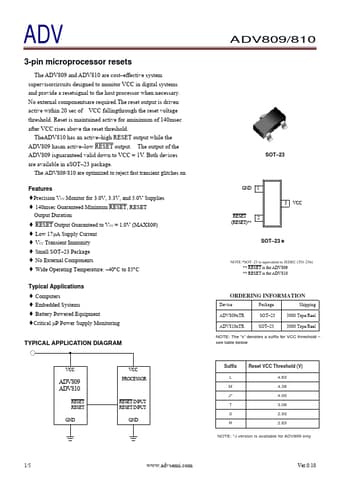

ADV809 Datasheet (145.80 KB)

Preview of ADV809 PDF

Datasheet Details

Part number:

ADV809

Manufacturer:

ADV

File Size:

145.80 KB

Description:

3-pin microprocessor resets.
ADV 3-pin microprocessor resets The ADV809 and ADV810 are cost

*effective system supervisorcircuits designed to monitor VCC in digital systems .
