AIS12CH60

3 Quadrants High temperature Triacs

AIS12CH60 Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 12 A )

* High Commutation dv/dt

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Compliant

* Isolated heatsink mounted , I

AIS12CH60 General Description

High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The AIS12CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing.

AIS12CH60 Datasheet (268.55 KB)

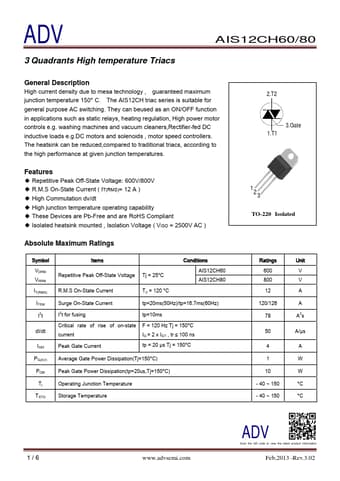

Preview of AIS12CH60 PDF

Datasheet Details

Part number:

AIS12CH60

Manufacturer:

ADV

File Size:

268.55 KB

Description:

3 quadrants high temperature triacs.
