AIS20CH60 Datasheet - ADV

AIS20CH60 - 3 Quadrants High temperature Triacs

High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

The AIS20CH triac series is suitable for general purpose AC switching.

They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g.

washing

AIS20CH60 Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 20 A )

* High Commutation dv/dt

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Compliant

* Isolated heatsink mounted , I

AIS20CH60-ADV.pdf

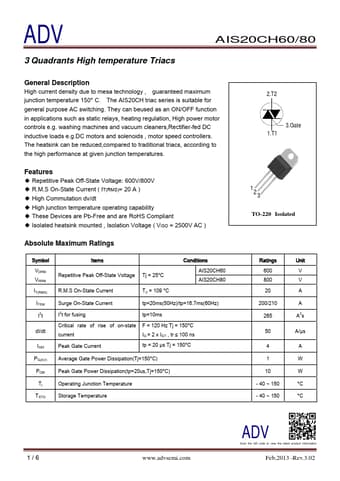

Preview of AIS20CH60 PDF
AIS20CH60 Datasheet Preview Page 2 AIS20CH60 Datasheet Preview Page 3

Datasheet Details

Part number:

AIS20CH60

Manufacturer:

ADV

File Size:

265.40 KB

Description:

3 quadrants high temperature triacs.
