AIS25CH80H

3 Quadrants High temperature Triacs

AIS25CH80H Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 25 A )

* High Commutation dv/dt

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Compliant

* Isolated heatsink mounted ,

AIS25CH80H General Description

High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The AIS25CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing.

AIS25CH80H Datasheet (263.00 KB)

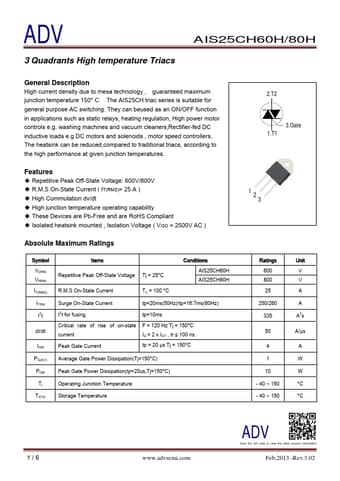

Preview of AIS25CH80H PDF

Datasheet Details

Part number:

AIS25CH80H

Manufacturer:

ADV

File Size:

263.00 KB

Description:

3 quadrants high temperature triacs.
