AIS55A160H - SCRs

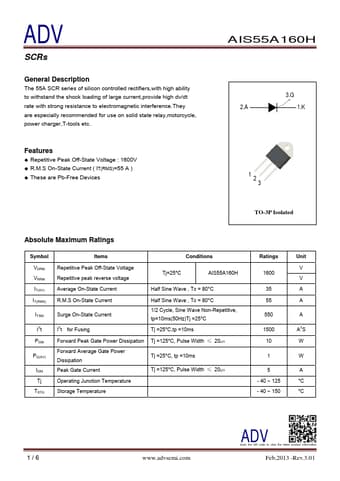

AIS55A160H Datasheet Preview — Preview of AIS55A160H PDF

Datasheet Details

Part number	AIS55A160H
Manufacturer	ADV
File Size	281.01 KB
Description	SCRs
Datasheet	AIS55A160H-ADV.pdf

AIS55A160H Product details

Description

The 55A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc.

Features

Repetitive Peak Off-State Voltage : 1600V.
R. M. S On-State Current ( IT(RMS)=55 A ).
These are Pb-Free Devices 1 23 TO-3P Isolated Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak reverse voltage Conditions Tj=25°C AIS55A160H Average On-State Current Half Sine Wave , Tc = 80°C R. M. S On-State Current Surge On-State Current I2t for Fusing Half Sine Wave , Tc = 80°C 1/2 Cycle,.
