AIT20CH80 3 Quadrants High temperature Triacs

High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The AIT20CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing.

AIT20CH80 Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 20 A )

* High Commutation dv/dt

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Compliant

* Isolated he

AIT20CH60-ADV.pdf

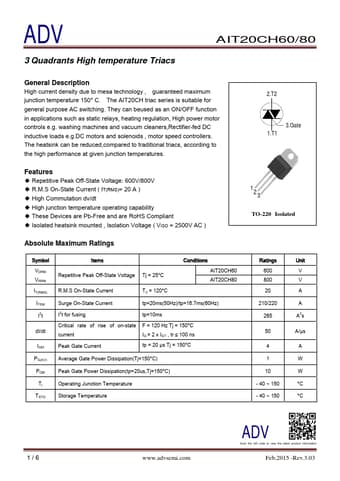

AIT20CH80 Datasheet Preview — This datasheet PDF includes multiple part numbers: AIT20CH80, AIT20CH60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AIT20CH80, AIT20CH60

Manufacturer:

ADV

File Size:

247.68 KB

Description:

3 quadrants high temperature triacs.

Note:

This datasheet PDF includes multiple part numbers: AIT20CH80, AIT20CH60.
Please refer to the document for exact specifications by model.
