AIT25CH80H 3 Quadrants High temperature Triacs

High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The AIT25CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing.

AIT25CH80H Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 25 A )

* High Commutation dv/dt

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Compliant

* Isolated heatsink mounted ,

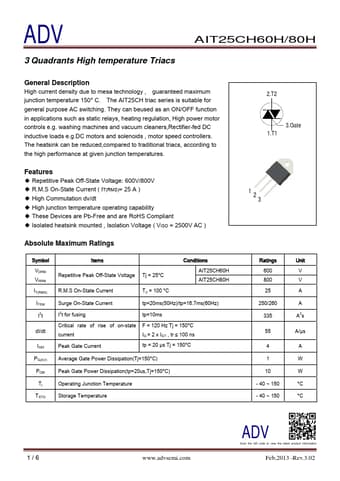

AIT25CH60H-ADV.pdf

AIT25CH80H Datasheet Preview — This datasheet PDF includes multiple part numbers: AIT25CH80H, AIT25CH60H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AIT25CH80H, AIT25CH60H

Manufacturer:

ADV

File Size:

262.70 KB

Description:

3 quadrants high temperature triacs.

Note:

This datasheet PDF includes multiple part numbers: AIT25CH80H, AIT25CH60H.
Please refer to the document for exact specifications by model.
