AIT4C80 Datasheet - ADV

3 Quadrants Triacs

AIT4C80 Features

* Repetitive Peak Off-State Voltage: 600Vand800V

* R.M.S On-State Current ( IT(RMS)= 4A )

* High Commutation dv/dt

* These Devices are Pb-Free and are RoHS Compliant

* Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC ) 123 TO-220 Isolated Absolute Maximum Ratings

AIT4C80 General Description

High current density due to mesa technology . the AIT4C triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, Rectifier-fed DC inductive loads e.g.DC motors and solenoids , motor speed controllers..

AIT4C80 Datasheet (261.60 KB)

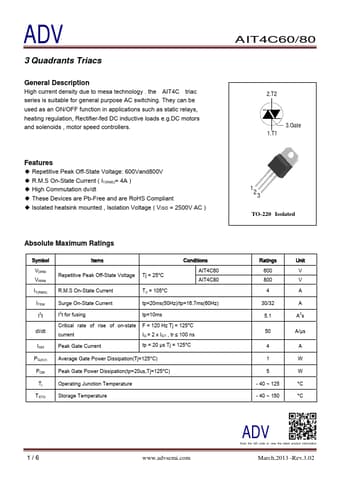

AIT4C80 Datasheet Preview — Preview of AIT4C80 PDF

Datasheet Details

Part number:

AIT4C80

Manufacturer:

ADV

File Size:

261.60 KB

Description:

3 quadrants triacs.
