AIT4CH80, AIT4CH60 - 3 Quadrants High temperature Triacs

The AIT4CH80 by ADV is a 3 Quadrants High temperature Triacs. Below is the official datasheet preview.

📥 Download Datasheet

AIT4CH80 3 Quadrants High temperature Triacs by ADV - Datasheet Preview — Official preview page of the AIT4CH80 3 Quadrants High temperature Triacs datasheet (ADV).

Datasheet Details

Part number	AIT4CH80, AIT4CH60
Manufacturer	ADV
File Size	300.33 KB
Description	3 Quadrants High temperature Triacs
Datasheet	AIT4CH60-ADV.pdf
Note	This datasheet PDF includes multiple part numbers: AIT4CH80, AIT4CH60. Please refer to the document for exact specifications by model.

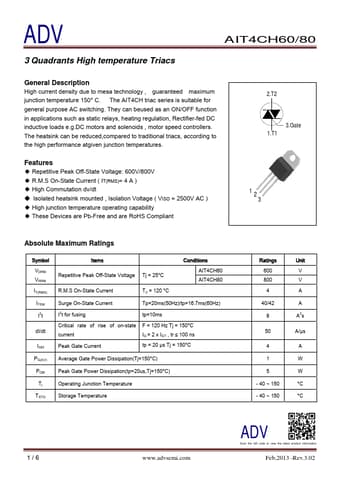

Additional preview pages of the AIT4CH80 datasheet.

AIT4CH80 Product details

Description

High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

Features

Repetitive Peak Off-State Voltage: 600V/800V.
R. M. S On-State Current ( IT(RMS)= 4 A ).
High Commutation dv/dt.
Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC ).
High junction temperature operating capability.
These Devices are Pb-Free and are RoHS Compliant 2.T2 3.Gate 1.T1.
