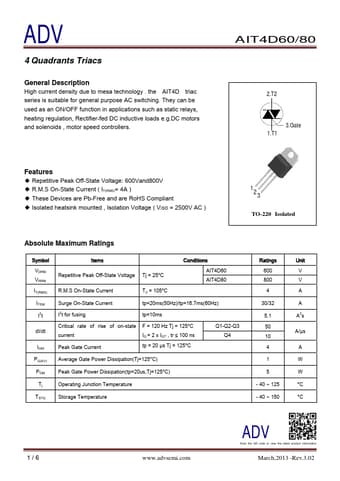

Description
High current density due to mesa technology .
Features
- Repetitive Peak Off-State Voltage: 600Vand800V.
- R. M. S On-State Current ( IT(RMS)= 4A ).
- These Devices are Pb-Free and are RoHS Compliant.
- Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC )
123 TO-220 Isolated
Absolute Maximum Ratings
Symbol VDRM VRRM IT(RMS) ITSM I2t
dI/dt
IGM PG(AV) PGM
Tj TSTG
Items
Repetitive Peak Off-State Voltage Tj = 25°C
R. M. S On-State Current
TC = 105°C
Conditions AIT4D60 AIT4D80
Surge On-State Current
tp=20ms(50Hz)/tp=16.7ms.
