AIT4D80, AIT4D60 - 4 Quadrants Triacs

The AIT4D80 by ADV is a 4 Quadrants Triacs. Below is the official datasheet preview.

Datasheet Details

Part number	AIT4D80, AIT4D60
Manufacturer	ADV
File Size	268.04 KB
Description	4 Quadrants Triacs
Datasheet	AIT4D60-ADV.pdf
Note	This datasheet PDF includes multiple part numbers: AIT4D80, AIT4D60. Please refer to the document for exact specifications by model.

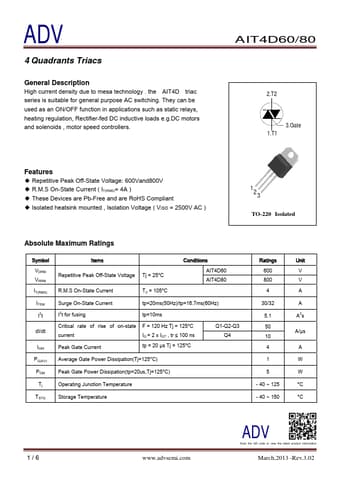

Additional preview pages of the AIT4D80 datasheet.

High current density due to mesa technology .

Repetitive Peak Off-State Voltage: 600Vand800V.
R. M. S On-State Current ( IT(RMS)= 4A ).
These Devices are Pb-Free and are RoHS Compliant.
Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC ) 123 TO-220 Isolated Absolute Maximum Ratings Symbol VDRM VRRM IT(RMS) ITSM I2t dI/dt IGM PG(AV) PGM Tj TSTG Items Repetitive Peak Off-State Voltage Tj = 25°C R. M. S On-State Current TC = 105°C Conditions AIT4D60 AIT4D80 Surge On-State Current tp=20ms(50Hz)/tp=16.7ms.
