AIT8CH60

3 Quadrants High temperature Triacs

AIT8CH60 Features

* Repetitive Peak Off-State Voltage: 600V/800V

* R.M.S On-State Current ( IT(RMS)= 8 A )

* High Commutation dv/dt

* Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC )

* High junction temperature operating capability

* These Devices are Pb-Free and are RoHS Comp

AIT8CH60 General Description

High current density due to mesa technology , guaranteed maximum junction temperature 150° C. The AIT8CH triac series is suitable for general purpose AC switching. They can beused as an ON/OFF function in applications such as static relays, heating regulation, High power motor controls e.g. washing .

AIT8CH60 Datasheet (289.84 KB)

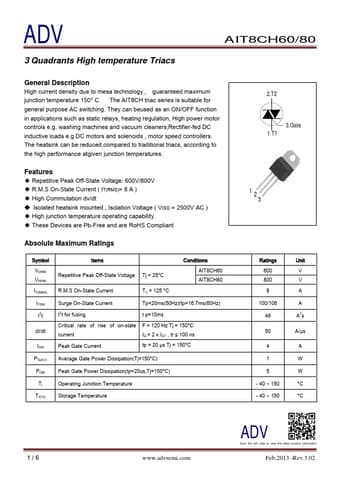

Preview of AIT8CH60 PDF

Datasheet Details

Part number:

AIT8CH60

Manufacturer:

ADV

File Size:

289.84 KB

Description:

3 quadrants high temperature triacs.
