AIT8CH80, AIT8CH60 3 Quadrants High temperature Triacs

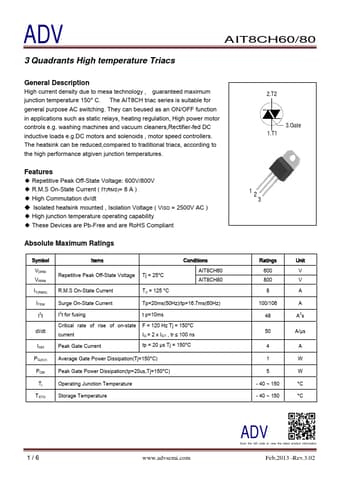

📥 Download Datasheet  Datasheet Preview Page 1

Description

ADV 3 Quadrants High temperature Triacs AIT8CH60/80 General .
High current density due to mesa technology , guaranteed maximum junction temperature 150° C.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AIT8CH80, AIT8CH60. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AIT8CH80, AIT8CH60
Manufacturer
ADV
File Size
289.84 KB
Datasheet
AIT8CH60-ADV.pdf
Description
3 Quadrants High temperature Triacs
Note
This datasheet PDF includes multiple part numbers: AIT8CH80, AIT8CH60.
Please refer to the document for exact specifications by model.

Features

* Repetitive Peak Off-State Voltage: 600V/800V
* R. M. S On-State Current ( IT(RMS)= 8 A )
* High Commutation dv/dt
* Isolated heatsink mounted , Isolation Voltage ( VISO = 2500V AC )
* High junction temperature operating capability
* These Devices are Pb-Free and are RoHS Comp

Applications

* such as static relays, heating regulation, High power motor controls e. g. washing machines and vacuum cleaners,Rectifier-fed DC inductive loads e. g. DC motors and solenoids , motor speed controllers. The heatsink can be reduced,compared to traditional triacs, according to the high performance atgiven
