AF1117A Datasheet, Regulator, AFSEMI

AF1117A Features

  • Regulator
  • Maximum output current is 1000mA
  • Range of operation input voltage: Max 15V
  • Line regulation: 0.1%/V (typ.)
  • Standby current: 2mA (typ.)
  • L

PDF File Details

Part number:

AF1117A

Manufacturer:

AFSEMI

File Size:

1.23MB

Download:

📄 Datasheet

Description:

1a bipolar linear regulator.

  • Typical Application AF1117A is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1.0A load curr

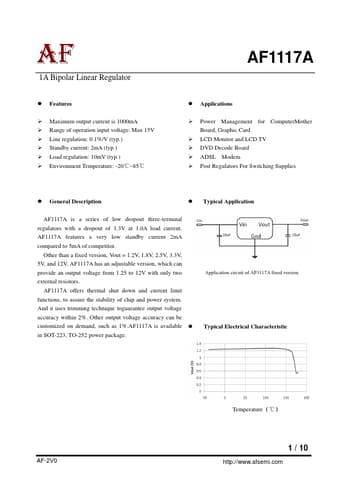

  • Datasheet Preview: AF1117A 📥 Download PDF (1.23MB)
    Rating: 1 (2 votes)
    Page 2 of AF1117A Page 3 of AF1117A

    AF1117A Application

    • Applications
    • Power Management for ComputerMother Board, Graphic Card
    • LCD Monitor and LCD TV
    • DVD Decode Board
