AF100461

EMI FILTER

AF100461 Features

*  Up to 300mA Output Current

*  Attenuation > 70dB @ 400 kHz

*  Low Profile Seam Welded Package

*  Ceramic Insulated Copper Core Pins

*  Operation Over the Temperature Range -55°C to 105°C without Power Derating - Note 3

*  Class K Screened per MIL-STD-38534

*  MIL-PRF-3

AF100461 General Description

The AF100461 Series EMI filter is designed to provide full compliance with the input line reflected ripple current requirement specified by MIL-STD-461C and MIL-STD-461F over the extended temperature range while operating in conjunction with the corresponding ARA and ARE Series of DC-DC converters. .

AF100461 Datasheet (538.36 KB)

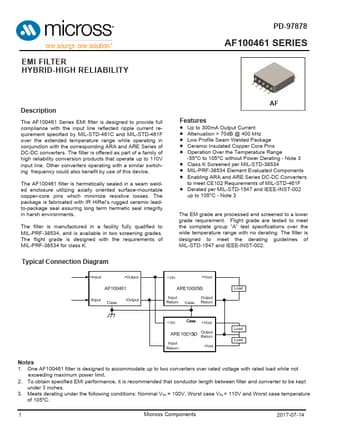

Preview of AF100461 PDF

Datasheet Details

Part number:

AF100461

Manufacturer:

Micross

File Size:

538.36 KB

Description:

Emi filter.
